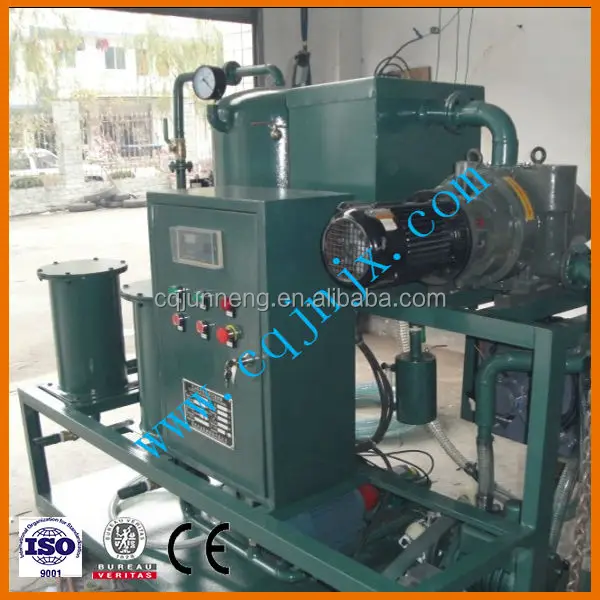

ZLA Two-Stage Vacuum Oil Filter machine

FOB Reference Price:Get Latest Price
$9,000.00 - $26,000.00 / Set | 1 Set/Sets (Min. Order)
Type:
Return Filter
Structure:
Vacuum
Model Number:
ZLA Two-Stage Vacuum Oil Purifier Series
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 8 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Place of Origin:
Chongqing, China
Brand Name:
Junneng
Weight:
according to machine model
Certification:
ISO9001 CE
Dimension(L*W*H):
according to machine model
Power(W):
according to machine model
cleanliness:
≤NAS 6
Water content in oil:
≤40 PPM
acid value:
≤0.1 mgKOH/g
Usage:
Transformer Oil
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
long distance ocean freight
Port
chongqing port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 8 To be negotiated

ZLA Two-Stage Vacuum Switch Oil Filter



ZLA series double stage vacuum oil purifier is manufactured according to standards, which go beyond Chinese legal criterion, dealing with almost insulation oil of power equipment more rapidly and effectively with the supporting of high vacuum and speed absorption. Thus the strength of insulation oil is much increased, and the dealing time has been shortened.

Features:

1) Manufactured as per standards which go beyond the legal criterion. A primary breakdown voltage can raise 35KV and reduces the oil damage causing by normal purifiers due to repeated heating.

2) Large absorption speed double vacuum meets the needs of vacuum zing of transformer on an installation or repair site, at the same time remove the water, gas, and also keep the completeness of transformer oil. It significantly shortens the oil treatment time.

3) The unique gas, water removal system adopting stereo-evaporation technology, which rapidly separates the water and gas in the oil and is free of maintenance.

4) A superior purification system with top quality filter core, which can accommodate large quantity of impurities and is progressively dandified step by step. It has been got a high precision and multi-stage filtration.

5) Imported parts adopt all electric system, which ensures high performance.

6) Advanced infrared liquid level control system with automatic control, allowing separated operation of manual operators from a machine.

7) Interlocked safety protection device. i.e., backflow of A oil outlet over pressure can be achieved via an overflow valve, B oil inlet will interlock with heating system which avoids any possible negative impacts caused by mal-operation

8) Precision oil pumps have low noise and environmental regulatory compliance will be well met.




Technical Parameters:

Model

Unit

ZLA-30

ZLA-50

ZLA-70

ZLA-100

ZLA-150

ZLA-200

ZLA-250

Rated flow

L/min

30

50

70

100

150

200

250

Vacuum Range

Mpa

-0.05~-0.099

Temperature Range

40~80

Oil pump pressure

Mpa

0.05~0.3

Total Power

kw

38

46

62

90

120

144

175

Power



50HZ   380V

Working Noise

db(A)

≤65~85

Cleanliness

NAS1638

≤NAS 6

Breakdown Voltage

kv

≥75

Water content in oil

PPM

≤3

Gas content in oil

%

≤0.05

Filter precision

µm

≤3

Inlet (outlet) diameter



25

32

32

42

50

60

60

Dimension(mm)



L

1480

1670

1820

2000

2100

2200

2300

W

980

1150

1300

1500

1600

1700

1800

H

950

1000

1200

1300

1600

1600

1600



Dimension and weight will be changed with changing the technical specification.
